Bmp Class Reference

a windows bitmap (might be loaded and saved). More...

#include <Bmp.h>

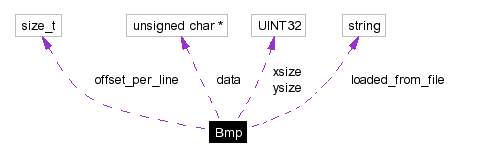

Collaboration diagram for Bmp:

[legend]List of all members.

Public Methods
	Bmp (const std::string &filename)
	read a bitmap from file. More...
	Bmp (size_t xsize_, size_t ysize_)
	construct an empty bitmap. More...
	Bmp (const Bmp &other)
Bmp &	operator= (const Bmp &other)
virtual	~Bmp ()
UINT32	Xsize () const
	get width of bitmap. More...
UINT32	Ysize () const
	get height of bitmap. More...
Pixel	getPixel (UINT32 xpos, UINT32 ypos)
	get access to one pixel of the bitmap. More...
const Pixel	getPixel (UINT32 xpos, UINT32 ypos) const
void	setPixel (UINT32 xpos, UINT32 ypos, unsigned char red, unsigned char green, unsigned char blue)
	set the value of a pixel in the Bmp. More...
void	saveAs (const std::string &filename) const
	save the bitmap to file. More...
const std::string &	originalFilename () const
	returns the filename the Bmp was loaded from. More...
void	left (Pixel &curr, size_t dist=1)
	move a Pixel leftwards. More...
void	right (Pixel &curr, size_t dist=1)
	move a Pixel rightwards. More...
void	up (Pixel &curr, size_t dist=1)
	move a Pixel upwards. More...
void	down (Pixel &curr, size_t dist=1)
	move a Pixel downwards. More...
Private Methods
unsigned char *	pixelPointer (UINT32 xpos, UINT32 ypos)
void	getPositions (const Pixel &pixel, UINT32 &xpos_result, UINT32 &ypos_result) const
Static Private Methods
void	throw_wrong_pix_pos ()
Private Attributes
std::string	loaded_from_file
UINT32	xsize
UINT32	ysize
unsigned char *	data
size_t	offset_per_line

Detailed Description

a windows bitmap (might be loaded and saved).

Definition at line 160 of file Bmp.h.

Constructor & Destructor Documentation

Bmp ( const std::string & filename )

read a bitmap from file.

Parameters:

filename guess what

Definition at line 114 of file Bmp.cpp.

Bmp ( size_t xsize_,

size_t ysize_

)

construct an empty bitmap.

Parameters:

xsize_ width of bitmap

ysize_ height of bitmap

Note:
All pixels are set to color (0, 0, 0)

Definition at line 60 of file Bmp.cpp.

Bmp ( const Bmp & other )

Definition at line 77 of file Bmp.cpp.

virtual ~Bmp ( ) [inline, virtual]

Definition at line 203 of file Bmp.h.

Member Function Documentation

void throw_wrong_pix_pos ( ) [static, private]

Definition at line 335 of file Bmp.cpp.
Referenced by Bmp::getPositions(), and Bmp::pixelPointer().

unsigned char* pixelPointer ( UINT32 xpos,

UINT32 ypos

) [inline, private]

Definition at line 172 of file Bmp.h.
Referenced by Bmp::getPixel(), and Bmp::setPixel().

void getPositions ( const Pixel & pixel,

UINT32 & xpos_result,

UINT32 & ypos_result

) const [inline, private]

Definition at line 177 of file Bmp.h.
Referenced by Bmp::down(), Bmp::left(), Bmp::right(), and Bmp::up().

Bmp & operator= ( const Bmp & other )

Definition at line 93 of file Bmp.cpp.

UINT32 Xsize ( ) const [inline]

get width of bitmap.

Definition at line 206 of file Bmp.h.
Referenced by rs::halfBmp(), and Bmp::saveAs().

UINT32 Ysize ( ) const [inline]

get height of bitmap.

Definition at line 209 of file Bmp.h.
Referenced by rs::halfBmp(), and Bmp::saveAs().

Pixel getPixel ( UINT32 xpos,

UINT32 ypos

) [inline]

get access to one pixel of the bitmap.

Parameters:

xpos horizontal offset in the bitmap (from left to right)

ypos vertical offset in the bitmap (from top to bottom)

Returns:
the Pixel

Definition at line 216 of file Bmp.h.
Referenced by Bmp::down(), rs::halfBmp(), Bmp::left(), Bmp::right(), and Bmp::up().

const Pixel getPixel ( UINT32 xpos,

UINT32 ypos

) const [inline]

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Definition at line 219 of file Bmp.h.

void setPixel ( UINT32 xpos,

UINT32 ypos,

unsigned char red,

unsigned char green,

unsigned char blue

) [inline]

set the value of a pixel in the Bmp.

Parameters:

xpos horizontal position

ypos vertical position

red value for red channel

green value for green channel

blue value for blue channel

Definition at line 228 of file Bmp.h.
Referenced by rs::halfBmp().

void saveAs ( const std::string & filename ) const

save the bitmap to file.

Parameters:

filename name of file to save

Definition at line 266 of file Bmp.cpp.

const std::string& originalFilename ( ) const [inline]

returns the filename the Bmp was loaded from.

Returns:
filename (or "" if Bmp wasn't loaded)

Definition at line 244 of file Bmp.h.

void left ( Pixel & curr,

size_t dist = 1

) [inline]

move a Pixel leftwards.

Definition at line 247 of file Bmp.h.

void right ( Pixel & curr,

size_t dist = 1

) [inline]

move a Pixel rightwards.

Definition at line 254 of file Bmp.h.

void up ( Pixel & curr,

size_t dist = 1

) [inline]

move a Pixel upwards.

Definition at line 261 of file Bmp.h.

void down ( Pixel & curr,

size_t dist = 1

) [inline]

move a Pixel downwards.

Definition at line 268 of file Bmp.h.

Member Data Documentation

std::string loaded_from_file [private]

Definition at line 162 of file Bmp.h.
Referenced by Bmp::Bmp(), Bmp::operator=(), and Bmp::originalFilename().

UINT32 xsize [private]

Definition at line 164 of file Bmp.h.
Referenced by Bmp::Bmp(), Bmp::getPositions(), Bmp::operator=(), Bmp::pixelPointer(), and Bmp::Xsize().

UINT32 ysize [private]

Definition at line 165 of file Bmp.h.
Referenced by Bmp::Bmp(), Bmp::getPositions(), Bmp::operator=(), Bmp::pixelPointer(), Bmp::saveAs(), and Bmp::Ysize().

unsigned char* data [private]

Definition at line 167 of file Bmp.h.
Referenced by Bmp::Bmp(), Bmp::getPositions(), Bmp::operator=(), Bmp::pixelPointer(), Bmp::saveAs(), and Bmp::~Bmp().

size_t offset_per_line [private]

Definition at line 168 of file Bmp.h.
Referenced by Bmp::Bmp(), Bmp::getPositions(), Bmp::operator=(), Bmp::pixelPointer(), and Bmp::saveAs().

The documentation for this class was generated from the following files:
