Pixel Class Reference

Reference to a pixel inside a Bmp. More...

#include <Bmp.h>

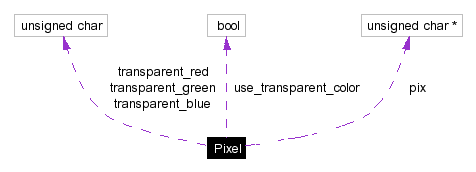

Collaboration diagram for Pixel:

[legend]List of all members.

Public Methods
	Pixel ()
	Construct a NULL-Pixel. More...
	Pixel (unsigned char *pixPtr)
	Construct a Pixel. More...
virtual	~Pixel ()
unsigned char *	getPixPointer ()
	provides low-level acces to the pixel pointer. More...
const unsigned char *	getPixPointer () const
int	color (int rgb) const
	return one color channel of the pixel. More...
void	set_color (int rgb, unsigned char value)
	set the color of one channel. More...
bool	hasTransparentColor () const
	Tests if a pixel is transparent ( = black). More...
void	countMisMatches (const Pixel &other, long &matchCounter, long &mismatchCounter, int max_dist)
	function for fuzzy pixel comparison. More...
long	distance (const Pixel &other) const
	calculates the color-distance between two Pixels. More...
Pixel &	operator++ ()
	increments to the next pixel (rightwards, line by line). More...
bool	operator== (const Pixel &other) const
bool	operator!= (const Pixel &other) const
Static Public Methods
void	defineTransparentColor (unsigned char red, unsigned char green, unsigned char blue)
	defines the transparent color (default = 0, 0, 0). More...
void	useTransparentColor (bool enabled)
	control whether a transparent color should be used (default is no). More...
Private Attributes
unsigned char *	pix
Static Private Attributes
unsigned char	transparent_red = 0
unsigned char	transparent_green = 0
unsigned char	transparent_blue = 0
bool	use_transparent_color = false

---

Detailed Description

Reference to a pixel inside a Bmp.

Definition at line 40 of file Bmp.h.

---

Constructor & Destructor Documentation

Pixel (    )  [inline]

Construct a NULL-Pixel. Definition at line 50 of file Bmp.h.

Pixel (  unsigned char *    pixPtr )  [inline]

Construct a Pixel. Parameters: pixPtr  pointer into Bmp bitmap See also: Bmp::getPixel Definition at line 55 of file Bmp.h.

virtual ~Pixel (    )  [inline, virtual]

Definition at line 56 of file Bmp.h.

---

Member Function Documentation

unsigned char* getPixPointer (    )  [inline]

provides low-level acces to the pixel pointer. Definition at line 59 of file Bmp.h. Referenced by Bmp::getPositions().

const unsigned char* getPixPointer (    )  const [inline]

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Definition at line 61 of file Bmp.h.

int color (  int    rgb )  const [inline]

return one color channel of the pixel. Parameters: rgb  channel selector (0 = red, 1 = green, 2 = blue) Returns: value of the channel Definition at line 67 of file Bmp.h. Referenced by Pixel::countMisMatches(), Pixel::distance(), rs::halfBmp(), Pixel::hasTransparentColor(), and Pixel::operator==().

void set_color (  int    rgb, unsigned char    value )  [inline]

set the color of one channel. Parameters: rgb  channel selector (0 = red, 1 = green, 2 = blue) value  new value for the channel Definition at line 73 of file Bmp.h.

bool hasTransparentColor (    )  const [inline]

Tests if a pixel is transparent ( = black). Returns: true if transparent See also: defineTransparentColor Definition at line 79 of file Bmp.h. Referenced by Pixel::countMisMatches(), and Pixel::distance().

void defineTransparentColor (  unsigned char    red, unsigned char    green, unsigned char    blue )  [static]

defines the transparent color (default = 0, 0, 0). Parameters: red  value for red channel green  value for green channel blue  value for blue channel Definition at line 43 of file Bmp.cpp.

void useTransparentColor (  bool    enabled )  [inline, static]

control whether a transparent color should be used (default is no). Parameters: enabled  if true = > transparent color will be used Definition at line 96 of file Bmp.h.

void countMisMatches (  const Pixel &    other, long &    matchCounter, long &    mismatchCounter, int    max_dist )  [inline]

function for fuzzy pixel comparison. Parameters: other  Pixel to compare with matchCounter  if none of the color channels differ more than max_dist matchCounter is incremented mismatchCounter  otherwise mismatchCounter is incremented max_dist  maximum color difference counted as match Note: if one of the Pixel's hasTransparentColor() the comparison neither counts as mismatch nor as match. Definition at line 109 of file Bmp.h.

long distance (  const Pixel &    other )  const [inline]

calculates the color-distance between two Pixels. Parameters: other  the other pixel Returns: distance color distance Definition at line 128 of file Bmp.h.

Pixel& operator++ (    )  [inline]

increments to the next pixel (rightwards, line by line). Note: be careful: you may run out of the bitmap with this operator Definition at line 141 of file Bmp.h.

bool operator== (  const Pixel &    other )  const [inline]

Definition at line 146 of file Bmp.h.

bool operator!= (  const Pixel &    other )  const [inline]

Definition at line 153 of file Bmp.h.

---

Member Data Documentation

unsigned char* pix [private]

Definition at line 42 of file Bmp.h. Referenced by Pixel::color(), Pixel::getPixPointer(), Pixel::operator++(), Pixel::Pixel(), and Pixel::set_color().

unsigned char transparent_red = 0 [static, private]

Definition at line 35 of file Bmp.cpp. Referenced by Pixel::hasTransparentColor().

unsigned char transparent_green = 0 [static, private]

Definition at line 36 of file Bmp.cpp. Referenced by Pixel::hasTransparentColor().

unsigned char transparent_blue = 0 [static, private]

Definition at line 37 of file Bmp.cpp. Referenced by Pixel::hasTransparentColor().

bool use_transparent_color = false [static, private]

Definition at line 38 of file Bmp.cpp. Referenced by Pixel::hasTransparentColor(), and Pixel::useTransparentColor().

---

The documentation for this class was generated from the following files:

• Bmp.h
• Bmp.cpp

---
